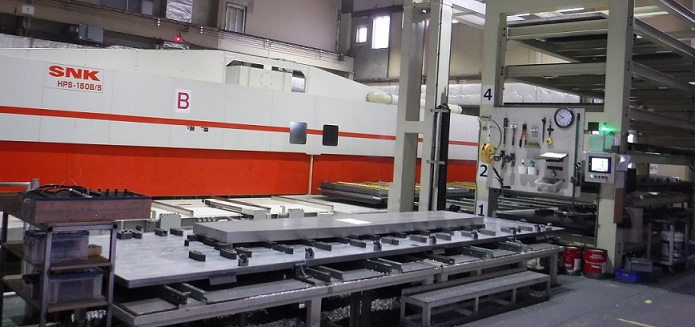

MachiningHorizontal 5 axises machining center [HPS-150B]
OUTLINE
It is high speed processing machine with high speed, high speed, high horsepower main shaft mounted. Equipped with our own pallet changer. Moreover, it has excellent chip control capacity unique to horizontal aircraft.
SPEC [HPS-150B]
Axis Number | Objectives | Type | Manufacturer | Horizontal, Vertical Design |
---|---|---|---|---|
5 axises | Duralumin/Steel system | 5 axises profiler | SNK | Horizontal |
Travels (X-Y-Z) | Feed rate ( cutting feed rate; mm/min) |
Feed rate ( fast feed; mm/min) |
Motor (kw) |
spindle speed (max rpm) |
X trav: 6150 Y trav: 1800 Z trav: 1000 |
20000 | 20000 | 55 | 15000 |
