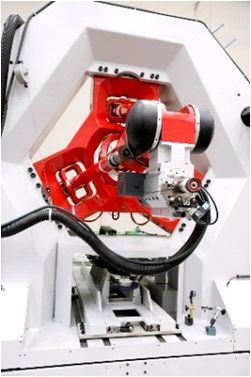

MachiningHorizontal 5 axises parallel link machine [PKM Triceot T805]
OUTLINE
This is the horizontal-designed 5 axises machine developed in-house. It's notable that the machine makes it possible to improve yield ratio by 30% more especially in machining of aluminium parts.
*On patent pending.
SPEC [PKM Triceot T805]
| Axis Number | Objectives | Type | メーカー | Horizontal, Vertical Design |
|---|---|---|---|---|
| 5 axises coregulation | Duralumin/Steel system | 5 axises machining center | ＰＫＭ | Parallel / Serial Hybrid 5 axises |
| Travels (X-Y-Z) | Feed rate ( cutting feed rate; mm/min) |
Feed rate ( fast feed; mm/min) |
Motor (kw) |
spindle speed (max rpm) |
| X trav: *200 Y trav: *500 Z trav: *152 |
50000 | 70000 | 107(17000rpm) 60(30000rpm) | 30000 |
※Work size
