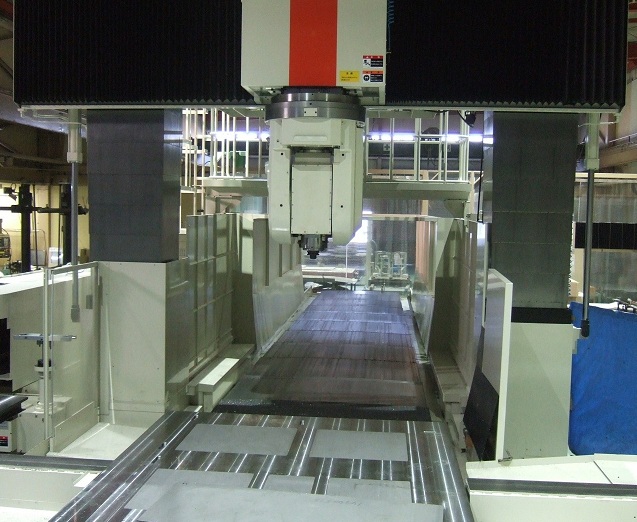

MachiningBridge type 5 axises machining center [RB-200F]
OUTLINE
It is a high speed processing machine with high speed, high horsepower main shaft mounted. Equipped with our own pallet changer.
SPEC [RB-200F]
Axis Number | Objectives | Type | Manufacturer | Horizontal, Vertical Design |
---|---|---|---|---|
5 axises | Duralumin/Steel system | 5 axises | SNK | Horizontal |
Travels (X-Y-Z) | Feed rate ( cutting feed rate; mm/min) |
Feed rate ( fast feed; mm/min) |
Motor (kw) |
spindle speed (max rpm) |
X trav: 10250 Y trav: 2900 Z trav: 1250 | 10000 | 12000 | 50 | 15000 |
